23 July 2024

Deploy Oracle E-Business Suite Cloud Manager 23.1.1 on OCI

Deploy Oracle E-Business Suite Cloud Manager 23.1.1 on OCI

There are four distinct categories of users referenced throughout this document: tenancy administrator, network administrator, Oracle E-Business Suite Cloud Manager administrator, and Oracle E-Business Suite administrators. Their roles are listed as follows:

·        Tenancy administrator

o   Creates compartments

o   Creates policies

o   Creates groups

o   Creates identity provider (IDCS) group mapping to manage authentication

o   Creates users

·        Network administrator

o   Designs network

o   Implements network design with cloud resources:

§  VCNs

o   Subnets

o   Gateways

o   Routing tables

o   Security lists/groups

o   Security rules

§  Fast Connect

  • Oracle E-Business Suite Cloud Manager administrator

o   Deploys Oracle E-Business Suite Cloud Manager

o   Defines network profiles to map:

§  Compartments

§  Network resources

o   Leverages compartments and network resources created previously

  • Oracle E-Business Suite administrators

o   Provisions and maintains Oracle E-Business Suite environments

o   Leverages network profiles defined previously

Note: If you wish, an Oracle E-Business Suite Cloud Manager administrator can also perform the duties of the network administrator and an Oracle E-Business Suite administrator. This is appropriate if you are configuring the system for demonstration use, or in any other circumstance where a single DBA will be performing all these roles. To accomplish this, you will make this user a member of the network administrators group and Oracle E-Business Suite administrators group.


Create Oracle Cloud Infrastructure Resources

Create Compartments

There are two types of compartments that we will refer to:

·      Cloud Manager Compartment - Compartment that holds the Oracle E-Business Suite Cloud Manager Compute instance

       Network Compartment - Compartment that holds network resources.



If you are giving a demonstration, you might choose to use one compartment for all components.

Oracle E-Business Suite Cloud Manager supports the use of nested compartments. Diagram 2 depicts the compartment hierarchies that have been explicitly certified:

Diagram 2 - Compartment Topology Examples

To create each compartment, perform the following

  1. While signed in to the Oracle Cloud Infrastructure Service Console, open the navigation menu and click Identity & Security. Under Identity, click Compartments.
  2. On the Compartments page, click Create Compartment.
  3. In the dialog window, enter the required details:
    • Name: Enter the compartment name. For example, network-compartment or ebscm-compartment.
    • Description: Enter a description of your choice.
    • Parent Compartment: Select the root compartment under which the new compartment will be created.
    • Click Create Compartment.

Create Groups and Assign Policies:

You will define two groups and assign the required policies.

§     The network administrators group (for example, netadmin-grp).

§     The Oracle E-Business Suite Cloud Manager administrators group (for example, ebscmadmin-grp).

Run the following commands to create the two groups and assign the required policies:

  1. Open the navigation menu and click Identity & Security. Under Identity, click Domains.
  2. Select the root compartment in the Compartment drop-down list.
  3. Within the list of domains, click the link for the "Default" domain.
  4. Click Groups.
  5. Click Create group.
  6. In the dialog window, enter the required details:
    • Name: Enter the name for the group. For example, netadmin-grp and ebscmadmin-grp.
    • Description: Enter a description of your choice.
  7. Click Create.

Assign Policies

1. Create networkcompartment-policy

  1. Open the navigation menu and click Identity & Security. Under Identity, click Policies.
  2. Create a policy for the network compartment to allow network administrators to manage it and for Oracle E-Business Suite Cloud Manager administrators to use it:
    1. Select the network compartment from the Compartment drop-down list on the left.
    2. Click Create Policy.
      • Name: Enter a name. networkcompartment-policy
      • Description: network administrator group policies0
      • In the Policy Builder section, click the Show manual editor

Allow group netadmin-grp to manage virtual-network-family in compartment network-compartment

Allow group ebscmadmin-grp to use virtual-network-family in compartment network-compartment

3.      Click Create.

2. ebscmcompartment-policy

Identity & Security. Under Identity, click Policies=>ebscmcompartment-policy =>description – Cloud manager compartment policies.

Click Show manual editor

Allow group ebscmadmin-grp to manage instance-family in compartment ebscm-compartment

Allow group ebscmadmin-grp to use load-balancer in compartment ebscm-compartment

Allow group ebscmadmin-grp to manage tag-namespaces in compartment ebscm-compartment

Create

2.3 Create Users and Assign to Appropriate Groups in OCI Service Console

  1. Open the navigation menu, and click Identity & Security. Under Identity, click Domains.
  2. Select the root compartment in the Compartment drop-down list.
  3. Within the list of domains, click the link for the "Default" domain.
  4. On the left hand side, click Users.

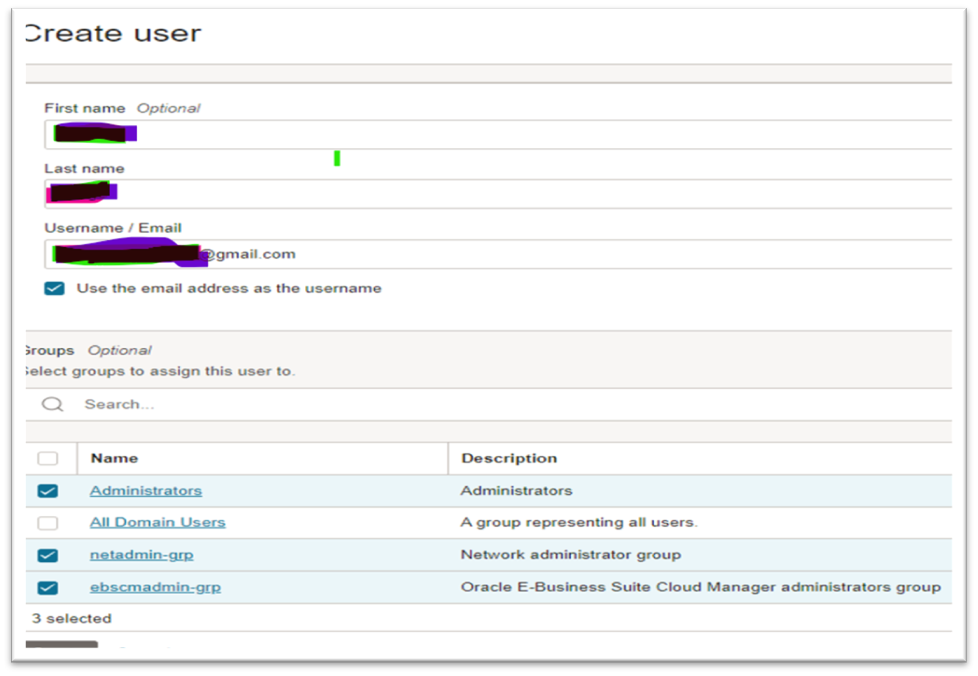

  5. Click Create User.
  6. In the Create User dialog box, enter the following:
    • First Name: First name of the user.
    • Last Name: Last name of the user.
    • Username / Email: A valid email ID.
    • Groups: Select the group that corresponds to the user you are creating. For example, if you are creating the Cloud Manager administrator, select the Cloud Manager administrators group. If you are creating the network administrator, select the network administrators group.
  7. Click Create.
  8. Grant the newly created user the Application Administrator role by following the steps in Assigning Users to Roles in the Oracle Cloud Infrastructure Documentation.

Create Network Resources for Deploying Oracle E-Business Suite Cloud Manage:

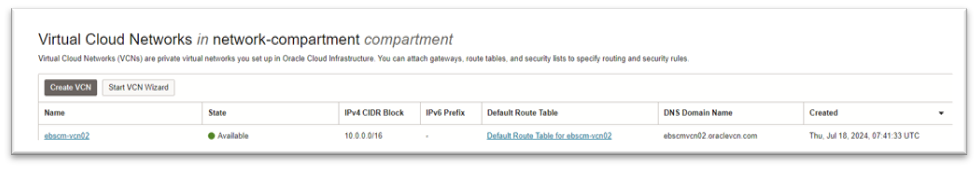

Create a Virtual Cloud Network

  1. From the OCI Service Console, click the menu icon at the top left to open the navigation menu. Under CORE INFRASTRUCTURE, go to Networking and click Virtual Cloud Networks.
  2. Click Create VCN and enter the required details for your VCN:
    1. CREATE IN COMPARTMENT: Select your network compartment.
    2. NAME: Supply a name, such as ebscm-vcn.
    3. CIDR BLOCK: Specify your choice of CIDR (for example, 10.0.0.0/16).
    4. Click Create VCN at the bottom of the window.

Note: When creating the VCN, accept the default DNS resolver. Oracle E-Business Suite provisioning in Oracle Cloud Infrastructure does not currently support a non-default DNS resolver VCN.

Create Network Resources for Use with Public Subnets

Create an Internet Gateway

To create an internet gateway:

  1. On the Virtual Cloud Networks screen, click the link with the name of your VCN, such as ebscm-vcn.
  2. Under Resources on the navigation menu at the left, select Internet Gateways.
  3. Click Create Internet Gateway:
    1. CREATE IN COMPARTMENT: Select your network compartment.
    2. NAME: Optional, but you can specify a name such as ebscm-igw.
    3. Click Create Internet Gateway at the bottom of the window.

Create Route Tables

You will create two separate route tables, one for the Oracle E-Business Suite Cloud Manager Compute instance and one for the load balancer. In the following examples, we will use the names ebscm-RouteTable and lbaas-RouteTable, respectively.

To create the route tables:

  1. On the Virtual Cloud Networks screen, click the link with the name of your VCN, such as ebscm-vcn.
  2. Under Resources in the navigation menu at the left, select Route Tables.
  3. Click Create Route Table:
    1. CREATE IN COMPARTMENT: Select your network compartment.
    2. NAME: Specify a name such as ebscm-RouteTable or lbaas-RouteTable.
    3. Click + Additional Route Rule.
    4. Enter Route Rules details as follows:
      • TARGET TYPE: Select Internet Gateway.
      • DESTINATION: 0.0.0.0/0
      • COMPARTMENT: Select your network compartment.
      • TARGET INTERNET GATEWAY: Select the previously created gateway.
    5. Click Create Route Table at the bottom of the window.

Perform these steps twice - once for the Oracle E-Business Suite Cloud Manager Compute instance route tables and once for the load balancer route tables.

 Create Security Lists

You will create two separate security lists, one for the Oracle E-Business Suite Cloud Manager Compute instance and one for the load balancer. In the following examples, we will use the names ebscmvm-seclist and lbaas-seclist, respectively.

Create the Oracle E-Business Suite Cloud Manager Security List

  1. On the Virtual Cloud Networks screen, click the link with the name of your VCN, such as ebscm-vcn.
  2. Under Resources in the navigation menu at the left, select Security Lists.
  3. Click Create Security List:
    1. CREATE IN COMPARTMENT: Select your network compartment.
    2. SECURITY LIST NAME: Specify a name such as ebscmvm-seclist.
    3. Under Allow Rules For Ingress:
      1. Click + Additional Ingress Rule.
      2. For the first rule that is needed, modify the default rule as follows:
        • SOURCE TYPE: CIDR
        • SOURCE CIDR: Enter the CIDR of your choice
        • IP PROTOCOL: TCP
        • SOURCE PORT RANGE: All
        • DESTINATION PORT RANGE: 22
      3. For the second rule that is needed, click + Additional Ingress Rule and enter the following values:
        • SOURCE TYPE: CIDR
        • SOURCE CIDR: 0.0.0.0/0
        • IP PROTOCOL: ICMP
        • TYPE: 3
        • CODE: 4
      4. For the third rule that is needed, click + Additional Ingress Rule and enter the following values:
        • SOURCE TYPE: CIDR
        • SOURCE CIDR: Enter the CIDR of your LBaaS subnet, lbaas-subnet-ad1. For example, 10.0.1.0/24. Note that the subnet is created in the next step.
        • IP PROTOCOL: TCP
        • SOURCE PORT RANGE: All
        • DESTINATION PORT RANGE: 8081
      5. For the fourth rule that is needed, click + Additional Ingress Rule and enter the following values:
        • SOURCE TYPE: CIDR
        • SOURCE CIDR: Enter the CIDR of your LBaaS subnet, lbaas-subnet-ad2. For example, 10.0.2.0/24. Note that the subnet is created in the next step.
        • IP PROTOCOL: TCP
        • SOURCE PORT RANGE: All
        • DESTINATION PORT RANGE: 8081

Note that the fourth rule is not required if a regional subnet is chosen for your public load balancer or if you are in a single availability domain region.

    1. Under Allow Rules For Egress:
      • Click + Additional Egress Rule.
      • For the single rule that is needed, modify the default rule as follows:
        • DESTINATION TYPE: CIDR
        • DESTINATION CIDR: 0.0.0.0/0
        • IP PROTOCOL: TCP
        • SOURCE PORT RANGE: All
        • DESTINATION PORT RANGE: All
    1. Click Create Security List at the bottom of the window.

Create the Load Balancer Security List

  1. On the Virtual Cloud Networks screen, click the link with the name of your VCN, such as ebscm-vcn.
  2. Under Resources on the navigation menu at the left, select Security Lists.
  3. Click Create Security List:
    1. CREATE IN COMPARTMENT: Select your network compartment.
    2. SECURITY LIST NAME: Specify a name such as lbaas-seclist.
    3. Under Allow Rules For Ingress:
      1. Click + Additional Ingress Rule and enter the following values for the ingress rule that is needed:
        • SOURCE TYPE: CIDR
        • SOURCE CIDR: Enter the CIDR corresponding to the IP addresses of your client machines that will access the Cloud Manager UI.
        • IP PROTOCOL: TCP
        • SOURCE PORT RANGE: All
        • DESTINATION PORT RANGE: 443 or other port of your choice. This port will be used in section 5.3 step 5, when prompting for the "Enter Load Balancer Listener Port".
    4. Under Allow Rules For Egress:
      • Click + Additional Egress Rule and enter the following values for the egress rule that is needed:
        • DESTINATION TYPE: CIDR
        • DESTINATION CIDR: 0.0.0.0/0
        • IP PROTOCOL: TCP
        • SOURCE PORT RANGE: All
        • DESTINATION PORT RANGE: All
    1. Click Create Security List at the bottom of the window.

3.2.4 Create Subnets

You will create the following new subnets:

  • One regional or availability domain-specific public subnet where the Oracle E-Business Suite Cloud Manager Compute instance will be created.
    • This may be referred to as the "provisioning VM subnet."
  • Either one or two subnets for creating the load balancer for the Oracle E-Business Suite Cloud Manager.
    • Create only one subnet for the load balancer if any of the following are true:
      • You are using a regional subnet.
      • You are in a single availability domain region.
    • Alternatively, if you choose to deploy using availability domain-specific subnets in a multiple availability domain region, you will create two subnets.

You will need to specify your own names and parameters, but you can use the examples in the following two tables for guidance.

If you choose to use regional subnets, refer to the following example:

Subnet Name CIDR Block Route Table Subnet Access Security List

ebscm-subnet-ad1 10.0.0.0/24 ebscm-RouteTable Public subnet ebscmvm-seclist

lbaas-subnet-ad1 10.0.1.0/24 lbaas-RouteTable Public subnet lbaas-seclist

To create a new subnet:

  1. On the Virtual Cloud Networks screen, click the link with the name of your VCN, such as ebscm-vcn.
  2. Under Resources on the navigation menu at the left, select Subnets.
  3. Click Create Subnet, specifying your choice for the following parameters:
    1. NAME
    2. SUBNET TYPE: Select either the REGIONAL (RECOMMENDED) or AVAILABILITY DOMAIN-SPECIFIC radio button from the drop-down list. If you choose AVAILABILITY DOMAIN-SPECIFIC, select your availability domain.
    3. CIDR BLOCK
    4. ROUTE TABLE: Ensure you choose a route table that has a target type of Internet Gateway.
    5. SUBNET ACCESS: Select the PUBLIC SUBNET radio button.
    6. SECURITY LIST
  4. Click Create at the bottom of the window.

Repeat these steps for each of the subnets you create.

Create Oracle E-Business Suite Cloud Manager Compute Instance

Oracle E-Business Suite Cloud Manager administrator performs all tasks as described.

Note: Oracle E-Business Suite Deployment on OCI in a Hybrid DNS Configuration always requires access to a VCN DNS resolver. If you are using such a configuration, ensure that IP address 169.254.169.254 is listed as a DNS server in the DHCP options.

  1. Log in to the OCI Service Console.
    1. In the menu on the left panel under the heading, navigate to Marketplace > Applications.
    2. Then, click the Oracle E-Business Suite Cloud Manager image.
    3. In the Version drop-down list, ensure that the default of Oracle-EBS-Cloud-Manager-20.1.1.2-<date> is selected.
    4. Select the compartment where you plan to install Oracle E-Business Suite Cloud Manager. For example, ebscm-compartment.
    5. Review and accept the Terms of Use.
    6. Click Launch Instance.

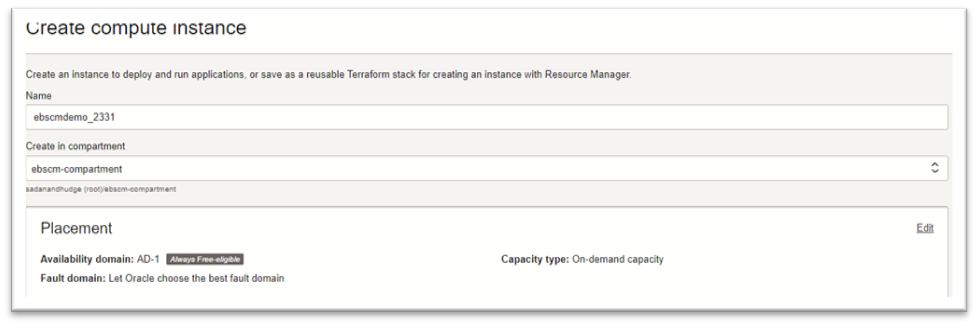

  2. In the Create Compute Instance dialog box, specify the following:
    1. Under Name, enter your choice of name for your instance. For example, ebscm-instance.
    2. In Create in Compartment, choose your compartment for your instance in the drop-down list.
    3. Under Image or Operating System, you will see the name of the OCI Console Marketplace image: Oracle E-Business Suite Cloud Manager.
    4. Under Availability Domain, make a suitable selection (based on the subnets you created previously) from the displayed options.
    5. Select the "Choose a Fault Domain for this Instance" checkbox, and then select a fault domain from the drop-down list.
    6. Under Shape, select a suitable shape. To do so, click Change Shape. Then select your desired shape (for example, select Intel Skylake and then "VM.Standard 2.2").
    7. Under Configure Networking:
      1. From the Virtual Cloud Network Compartment drop-down list, select the compartment where your VCN resides. For example, network-compartment.
      2. From the Select a Virtual Cloud Network drop-down list, choose your VCN. For example, ebscm-vcn.
      3. Under Subnet Compartment, select the compartment where your VCN resides. For example, network-compartment.
      4. Under Subnet, specify the Oracle E-Business Suite Cloud Manager subnet. For example, ebscm-subnet-ad1.
      5. If the VM is associated with a public subnet and you want to assign a public IP address, select the "Assign a Public IP Address" radio button.

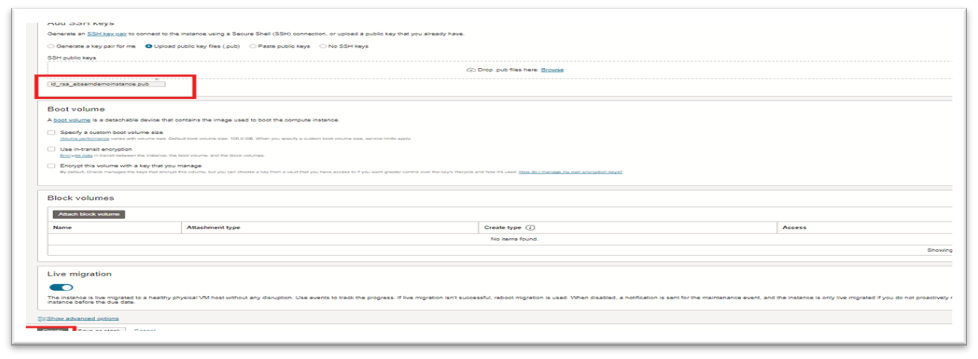

    8. Under Add SSH Keys, choose one of the following two options, either (i) or (ii):
      1. Select the Choose SSH Key Files radio button, and then drag and drop or browse to specify the file containing your SSH public key generated previously.
      2. Alternatively, select the Paste SSH Keys radio button and paste the SSH public key content in the text field provided, using the content of the public key generated previously.
    9. Leave the values in the Boot Volume section unchecked, which results in accepting the default volume size.
  3. Click the Create button at the bottom of screen.

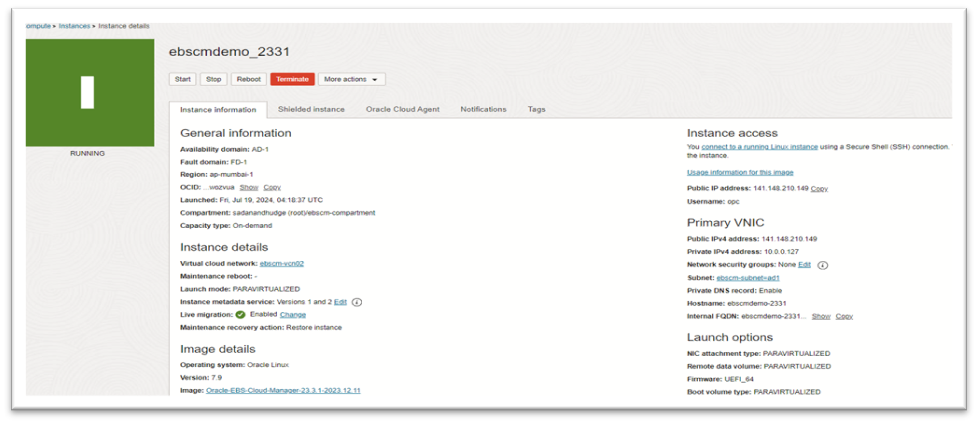

  4. After the instance has been created (provisioned), it will appear in the instance list. To view full details about it, including IP addresses, click the instance name in the list.
  5. When the Oracle E-Business Suite Cloud Manager instance is fully provisioned and running, you can connect to it by following the instructions in Connecting to an Instance in the Oracle Cloud Infrastructure Documentation.

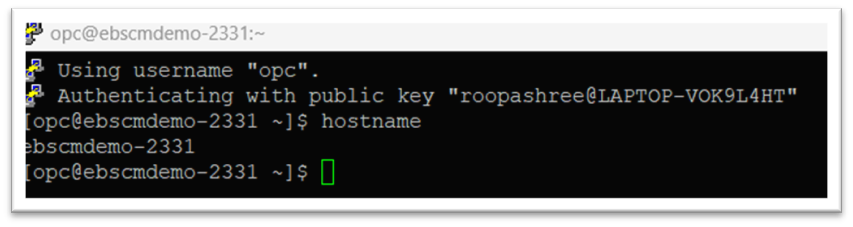

 Configure Oracle E-Business Suite Cloud Manager Compute Instance

ssh opc@IP address

The Oracle E-Business Suite Cloud Manager administrator and tenancy administrator perform all the tasks as described.

Follow the instructions in this section to configure your Oracle E-Business Suite Cloud Manager Compute instance. You will perform many of these operations from the OCI Service Console.

Configure Authentication API Keys

1. If you haven't already, create an .oci directory to store the credentials:

mkdir ~/.oci

2. Generate the private key with one of the following commands.

To generate the key, encrypted with a passphrase you provide when prompted:

openssl genrsa -out ~/.oci/oci_api_key.pem -aes128 2048

To generate the key with no passphrase:

openssl genrsa -out ~/.oci/oci_api_key.pem 2048

3. Change the file permission to ensure that only you can read the private key file:

chmod go-rwx ~/.oci/oci_api_key.pem

4. Generate the public key from your new private key:

openssl rsa -pubout -in ~/.oci/oci_api_key.pem -out ~/.oci/oci_api_key_public.pem

5. Copy the contents of the public key to the clipboard using or a similar tool (you'll need to paste the value into the Console later). For example:

cat ~/.oci/oci_api_key_public.pem

{

[opc@ebscmdemo-2331 ~]$ mkdir ~/.oci

[opc@ebscmdemo-2331 ~]$ openssl genrsa -out ~/.oci/oci_api_key.pem 2048

Generating RSA private key, 2048 bit long modulus

...................................................................................................................................+++

............................................................................+++

e is 65537 (0x10001)

[opc@ebscmdemo-2331 ~]$ chmod go-rwx ~/.oci/oci_api_key.pem

[opc@ebscmdemo-2331 ~]$ openssl rsa -pubout -in ~/.oci/oci_api_key.pem -out ~/.oci/oci_api_key_public.pem

writing RSA key

[opc@ebscmdemo-2331 ~]$ cat ~/.oci/oci_api_key_public.pem

-----BEGIN PUBLIC KEY-----

MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA0Ac0nfGUi06FbPJBbNG/

6SKmUUtkFlHgZh+yO9SiBQi4+h80EWo4lCiGk3HY2Tyo860JnjJTk1Sx5ijYdACa

+Q7zDDoD78WLR4v9EfzAuu6RiYcMKlh2YUiR6a5RuG/LG/PglN6cuw7F5T1sb6pg

SODJ6ukmTx3Vo4emkst3HRh0dZWbihFxAk0BZ3SEUjdprj2Bbvd5SOB9oYWacEgd

dTAecwYHygiFB21NnABhAbKZOvNig+u/DDDHrTv3/Jzf+R2RFpxyRf1jfHnmQpFG

WbYD2yG8d+6H/mF8cwkRAmdxNwEIMwV14vx5XnnUm1fg/eMf6JoilIpreRL8gzbH

6QIDAQAB

-----END PUBLIC KEY-----

[opc@ebscmdemo-2331 ~]$

}
Upload the public pem key to the Oracle EBS Cloud Manager User

Priyanka.hudge09@gmail.com =>API Key=> Paste public key file =>add close





Identify Credential Required for Configuration Scripts

Tenancy OCID: ocid1.tenancy.oc1..aaaaaaaaduzzgd35ujbwii76ngd5u4ykvywv7znbny4y5jjgewa2z57ndlla

User OCID: ocid1.user.oc1..aaaaaaaarqh2eqtiffbgtfstp7j7i4o4w5cmogq7eflvepsht2ehjut2ji3a

API singing path: home/opc/.oci/oci_api_key.pem


Change the permission:

cd /home

chmod 775 opc

cd /home/opc/.oci

sudo chown oracle:opc oci_api_key.pem

{

[opc@ebscmdemo-2331 ~]$ cd /home

[opc@ebscmdemo-2331 home]$ chmod 775 opc

[opc@ebscmdemo-2331 home]$ cd /home/opc/.oci

[opc@ebscmdemo-2331 .oci]$ sudo chown oracle:opc oci_api_key.pem

[opc@ebscmdemo-2331 .oci]$

}


Run Oracle E-Business Suite Cloud Manager Configure Script For the First Time

sudo su - oracle
cd /u01/install/APPS/apps-unlimited-ebs/bin
perl configure.pl

Before running the configure.pl scripts, need the below mentioned values

Admin password   OcItArGeT$345

Tenancy OCID: ocid1.tenancy.oc1..aaaaaaaaduzzgd35ujbwii76ngd5u4ykvywv7znbny4y5jjgewa2z57ndlla

User OCID: ocid1.user.oc1..aaaaaaaarqh2eqtiffbgtfstp7j7i4o4w5cmogq7eflvepsht2ehjut2ji3a

API singing path: /home/opc/.oci/oci_api_key.pem



[opc@ebscmdemo-2331 .oci]$ sudo su - oracle

[oracle@ebscmdemo-2331 ~]$ cd /u01/install/APPS/apps-unlimited-ebs/bin

[oracle@ebscmdemo-2331 bin]$ ls -lrt configure.pl

-rwxr-xr-x. 1 oracle oinstall 3455 Dec  6  2023 configure.pl

[oracle@ebscmdemo-2331 bin]$ perl configure.pl



Created log file: /u01/install/APPS/apps-unlimited-ebs/out/configure_2024-07-19_04_33_33.log

===========================================================

Configuring Oracle E-Business Suite Cloud Manager VM 23.3.1

===========================================================

Creating ssh key pair

Enter New Oracle E-Business Suite Cloud Manager Admin Password                   : *************

Re-enter New Oracle E-Business Suite Cloud Manager Admin Password                : *************

Enter Oracle E-Business Suite Cloud Manager Admin User OCID (Non-Federated)      : ocid1.user.oc1..aaaaaaaarqh2eqtiffbgtfstp7j7i4o4w5cmogq7eflvepsht2ehjut2ji3a

Enter Full path to API Private Signing Key                                       : /home/opc/.oci/oci_api_key.pem

Enter Tenancy OCID                                                               : ocid1.tenancy.oc1..aaaaaaaaduzzgd35ujbwii76ngd5u4ykvywv7znbny4y5jjgewa2z57ndlla

Validating OCI credentials. Please wait.

Creating user specific OCI configuration file, /u01/install/APPS/.oci/priyanka.hudge09@gmail.com.

User specific OCI configuration file created successfully.

Available groups from OCI for provided user:



Group Name                                      Description

----------                                      -----------

 1: ebscmadmin-grp                          Oracle E-Business Suite Cloud Manager administrators group

 2: netadmin-grp                                Network administrator group

 3: Administrators                              Administrators



Choose Oracle E-Business Suite Cloud Manager Administration group from above list: 1



Do you wish to use an existing Load Balancer??

1: yes

2: no



Enter your choice: 2

Choose Load Balancer visibility type:

1: Public

2: Private



Enter your choice: 1

Choose Size of Bandwidth for Flexible Shape Load Balancer:

Enter Minimum Bandwidth in Mbps                                                  : 10

Enter Maximum Bandwidth in Mbps                                                  : 10


Available List of Subnets:

Availability Domain: yxJL:AP-MUMBAI-1-AD-1

------------------------------

1: Ibaas-subnet-ad1



Choose subnet from above list: 1


Enter Load Balancer Listener Port                                                : 443

Enter CIDR Block (Range) from which Client can Access Load Balancer Listener Port: 0.0.0.0/0

----------------------------------------------------------------------------------------------------------

Summary of Inputs

----------------------------------------------------------------------------------------------------------

Oracle E-Business Suite Cloud Manager User Name ( Non Federated )           : priyanka.hudge09@gmail.com

Oracle E-Business Suite Cloud Manager User OCID ( Non Federated )           : ocid1.user.oc1..aaaaaaaarqh2eqtiffbgtfstp7j7i4o4w5cmogq7eflvepsht2ehjut2ji3a

Fingerprint of API Public Key                                               : e0:b1:aa:09:35:b6:c4:0a:36:e7:7d:17:88:f1:e7:f6

Path to Private PEM key file                                                : /home/opc/.oci/oci_api_key.pem

Tenancy OCID                                                                : ocid1.tenancy.oc1..aaaaaaaaduzzgd35ujbwii76ngd5u4ykvywv7znbny4y5jjgewa2z57ndlla

Region                                                                      : ap-mumbai-1

Oracle E-Business Suite Cloud Manager VM Compartment Name                   : ebscm-compartment

Oracle E-Business Suite Cloud Manager VM Compartment OCID                   : ocid1.compartment.oc1..aaaaaaaayyfwwmftovve6vshkjghmv2jey4ulabnlhkttngyf4hlkgq557aq

Oracle E-Business Suite Cloud Manager Administration Group Name             : ebscmadmin-grp

Oracle E-Business Suite Cloud Manager Administration Group OCID             : ocid1.group.oc1..aaaaaaaasmp5gt7jo3h4dppoiwfi5ud3g5q7oyko4v3rwwtfm6swf65ymueq

Network Compartment Name                                                    : network-compartment

Network Compartment OCID                                                    : ocid1.compartment.oc1..aaaaaaaarilbtvfcvpsvfrgo4r7dh4usduuqvnolahui456f6nlk52xgiutq

Network VCN Name                                                            : ebscm-vcn02

Network VCN OCID                                                            : ocid1.vcn.oc1.ap-mumbai-1.amaaaaaa62arzzqahhpyanqhj3le464oqdo46hyupnywgra7t23ojzj25yoa

Use an existing Load Balancer                                               : false

Load Balancer Listener Port                                                 : 443

CIDR Block (Range) from which Client can Access Load Balancer Listener Port : 0.0.0.0/0

Load Balancer Visibility Type                                               : Public

Load Balancer Shape                                                         : flexible

Load Balancer Minimum Bandwidth in Mbps                                     : 100

Load Balancer Maximum Bandwidth in Mbps                                     : 100

Load Balancer Subnet Name                                                   : Ibaas-subnet-ad1

Load Balancer Subnet OCID                                                   : ocid1.subnet.oc1.ap-mumbai-1.aaaaaaaalp73ihi5z2othqq36tbjwkgdhnwrd64yet6xfobuvpavunstcluq

Load Balancer Subnet CIDR                                                   : 10.0.1.0/24

----------------------------------------------------------------------------------------------------------

Do you wish to continue??

1: yes

2: no



Enter your choice: 1

Changing default root password with user-provided password.

Securing database installation.

Setting up Load Balancer for Oracle E-Business Suite Cloud Manager VM. This may take a few minutes. Please wait.

Checking Security Lists of LBaaS Subnet, Ibaas-subnet-ad1

Checking Security Lists of Oracle E-Business Suite Cloud Manager VM Subnet, ebscm-subnet=ad1 with source CIDR 10.0.1.0/24

==============================================================

Load Balancer ebscmdemo-2331-prov-vm-lbaas configuration completed. Review screen messages above to determine if security rules are missing and must be added in order to access the load balancer URL.

==============================================================

Register confidential application in IDCS with URL: https://146.56.53.9:443 and then re-run this script to update your IDCS configuration.

==============================

Finished Configuring Oracle E-Business Suite Cloud Manager VM.

Login URL: https://146.56.53.9:443

Ensure the confidential application is correctly configured in IDCS as per the documentation.

==============================================================

[oracle@ebscmdemo-2331 bin]$



Configure IDCS Integration with Oracle E-Business Suite Cloud Manager

1. Create Groups and Users in Identity Cloud Service

https://myservices-cacct-828bbc8c83824586a0a6b3e241ab4497.console.oraclecloud.com/mycloud/cloudportal/cloudHome

select My Home.

Select Service users control






click Admin Console

Username: Priyanka.hudge09@gmail.com

Password: Shreenidhi@45678



2. Register Oracle E-Business Suite Cloud Manager as a Confidential Application

  1. Open the navigation menu and click Identity & Security. Under Identity, click Domains.
  2. Select the root compartment in the Compartment drop-down list.
  3. Within the list of domains, click the link for the "Default" domain.
  4. Click Integrated applications in the menu on the left.
  5. Click Add application.
  6. Select Confidential Application in the dialog box.
  7. Click Launch Workflow.
  8. Under Add application details, enter the following:
    • Name: Enter a name.
    • Description: Enter a description.
  9. Click Next.

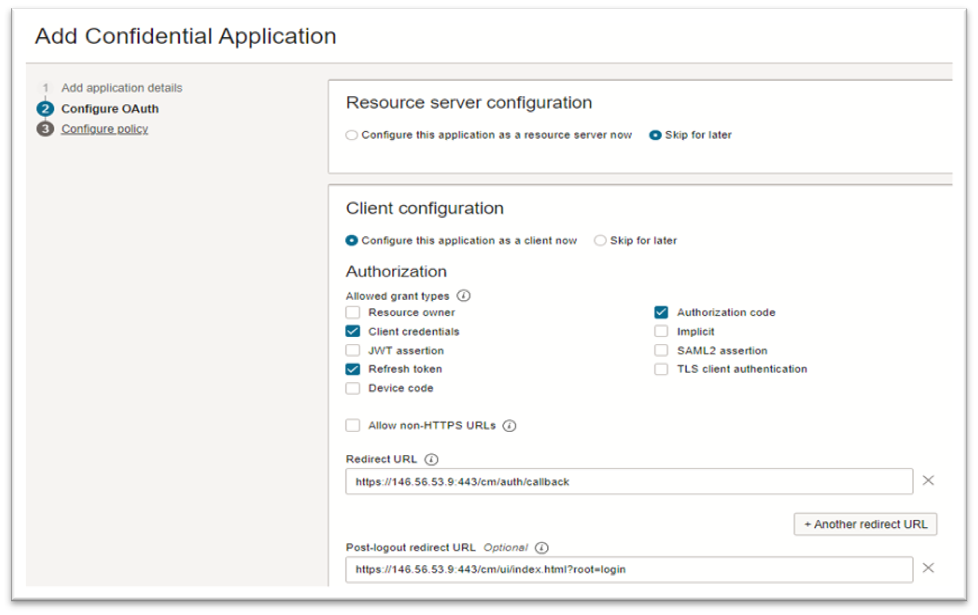

  10. Under Configure OAuth:

a.                Click Configure this application as a client now.

b.                Under Allowed Grant Types, select the following options:

      • Client Credentials
      • Refresh Token
      • Authorization Code

Additionally, if you plan to create standby environments or to upgrade environments from Oracle E-Business Suite Release 12.1 to Release 12.2, select the Resource Owner option.

c.                Redirect URL: This is the load balancer URL from step 7 of Run Oracle E-Business Suite Cloud Manager Configure Script for the First Time in the following format: <Your Load Balancer URL>/cm/auth/callback. For example: https://xxx.xxx.xx.xxx:xxx/cm/auth/callback

d.                Post-Logout Redirect URL: <Your Load Balancer URL>/cm/ui/index.html?root=login. For example: https://xxx.xxx.xxx.xxx:xxx/cm/ui/index.html?root=login

e.                Logout URL: Leave this field empty.

f.                 Under Client Type, ensure that the Confidential radio button is selected.

g.                Select the Introspect option for Allowed Operations.

h.                Under Token Issuance Policy, select the Add app roles checkbox.

i.Click Add roles.

ii.Select Authenticator Client and Me.

iii.Click Add, and then click Next.

  1. Under Configure policy, click Finish.
  2. Make a note of the following values under General Information:
    • Client ID
    • Client secret (In order to view, click Show secret.)
  3. Click Activate and confirm to activate the confidential application.
  4. Record the Domain URL found in the Overview page for the domain






    Finish

                Activate





Note down the below mentioned:

Client ID: 09c43ba7b35646e6a4b2ac2bee72598c

Client secret: 15726537-4683-4584-9f27-c3794c5259b0

Idcs Client Tenant URL:

https://idcs-e1e23ae5b09242d598377eca787b8f61.identity.oraclecloud.com:443

Idcs: idcs-e1e23ae5b09242d598377eca787b8f61



Run Oracle E-Business Suite Cloud Manager Configure Script for the Second Time:

$ sudo su - oracle
$ cd /u01/install/APPS/apps-unlimited-ebs/bin
$ perl configure.pl

Admin password: OcItArGeT$345

Client ID: 09c43ba7b35646e6a4b2ac2bee72598c

Client secret: 15726537-4683-4584-9f27-c3794c5259b0

Idcs Client Tenant:  Idcs: idcs-e1e23ae5b09242d598377eca787b8f61

{

[oracle@ebscmdemo-2331 bin]$ cd /u01/install/APPS/apps-unlimited-ebs/bin

[oracle@ebscmdemo-2331 bin]$ perl configure.pl


Created log file: /u01/install/APPS/apps-unlimited-ebs/out/configure_2024-07-19_05_18_48.log

===========================================================

Configuring Oracle E-Business Suite Cloud Manager VM 23.3.1

===========================================================

Enter Oracle E-Business Suite Cloud Manager Admin Password                       : *************



Enter IDCS Client ID                                                             : 09c43ba7b35646e6a4b2ac2bee72598c

Enter IDCS Client Secret                                                         : 15726537-4683-4584-9f27-c3794c5259b0

Enter IDCS Client Tenant                                                         : idcs-e1e23ae5b09242d598377eca787b8f61

----------------------------------------------------------------------------------------------------------

Summary of Inputs

----------------------------------------------------------------------------------------------------------

IDCS Client ID                                                              : 09c43ba7b35646e6a4b2ac2bee72598c

IDCS Client Secret                                                          : 15726537-4683-4584-9f27-c3794c5259b0

IDCS Client Tenant                                                          : idcs-e1e23ae5b09242d598377eca787b8f61

IDCS Host                                                                   : https://idcs-e1e23ae5b09242d598377eca787b8f61.identity.oraclecloud.com

----------------------------------------------------------------------------------------------------------

Do you wish to continue??

1: yes

2: no



Enter your choice: 1

Database schema is already configured. No action needed.

Load Balancer ebscmdemo-2331-prov-vm-lbaas is already configured. No action needed.

Configuring IDCS

Reconfiguring Chef Server. Please wait.

Installing Chef Server. Please wait.

Starting ChefServer.

Uploading cookbooks

Stopping Node and Job Server if running.

Starting Node and Job Server.

==================================================================================

Finished Configuring Oracle E-Business Suite Cloud Manager VM.

Login URL: https://146.56.53.9:443

Ensure the confidential application is correctly configured in IDCS as per the documentation.

==================================================================================

[oracle@ebscmdemo-2331 bin]$



Log in to Oracle E-Business Suite Cloud Manager

  1. Navigate to Notepad in your start menu.
  2. Hover over Notepad, right-click, and select the option Run as Administrator.
  3. In Notepad, navigate to File > Open.
  4. Browse to C:\\Windows\System32\drivers\etc.
  5. Find the file "hosts".

6.      In the hosts file, scroll down to the end of the content.

7.      Add the following entry to the very end of the file: <lb_public_ip> myebscm.ebshol.org

8.      Save the file.

Oracle E Business Suite Cloud Manager URL

Login URL: https://IP address:443

Username           :  admin

CM Admin password: OcItArGeT$345

CM ADministrator Username: Priyanka.hudge09@gmail.com

CM Administrator User password: Shreenidhi@45678




Reference:-

Deploying Oracle E-Business Suite Cloud Manager Version 20.1.1.X on Oracle Cloud Infrastructure (Doc ID 2434500.1)

Oracle E-Business Suite Cloud Manager Guide:

https://docs.oracle.com/cd/E26401_01/doc.122/f35809/T679330T679339.htm




Posted by at No comments:
Subscribe to: Posts (Atom)
